Manufacturing test

Home Products

Our Products

TOOLFAST' Steel V-Blocks are made of tool steel, hardened, tempered & precision ground on all sides. These are supplied in matched pairs having both sides 'V' with one clamp Unbreakable Steel Clamp.All Hardened & Tempered 52 - 56 HRC.Parallelism & Squareness of all faces & 'V' within ± 0.005mm.Inspection certificate is furnished. MODEL LENGTH HEIGHT WIDTH HOLDING CAPACITYØ MAX N. W. KGS.(PAIR WITHONE CLAMP)SVB-50 50 37 37 37 1.1SVB-80 80 60 60 60 3.8SVB-100 100 75 75 75 7.6SVB-125 125 95 95 95 14.3SVB-150 150 98 98 98 19.0
Steel V-Block
VIEW DETAILS
TOOLFAST' Precision Sine Vice is used to obtain precise angles by means of gauge blocks. Apart from its use on milling and grinding machine, this Sine Vice can also be used as a reference for inspection. Hardened & Tempered 52 - 56 HRC. Parallelism within 0.005mm upto 200mm length. Inspection certificate is furnished. Chart for setting sine angles with the help of gauge blocks is provided.MODEL JAW WIDTH JAW DEPTH MAX. JAW OPENING OVERALL LENGTH OVERALL HEIGHT N. W.KGS.PSV-2 50 25 65 140 80 3.2PSV-3 73 35 100 190 104 7.2PSV-4 100 45 125 245 134 16.5
Precision Sine Vice
VIEW DETAILS
Using the current technology, up-to-date machines and urbane equipment in all our processes, we are capable of offering a precisely-engineered array of Grinding Vice- Screw Type. Massively reckoned amongst our customers for their reliability, seamless finish and ruggedness these offered products are highly demanded. Additionally, our clients can buy these from us at most reasonable costs.MODEL JAW WIDTH JAW DEPTH MAX. JAW OPENING OVERALL LENGTH OVERALL HEIGHT N. W.KGS.GV-65 63 32 85 190 65 4.4GV-75 73 35 100 210 74 6.2GV-90 88 40 125 250 88 10.0GV-100 100 45 125 260 95 13.0GV-100 125 50 158 300 110 20.0GV-150 150 50 175 315 110 24.5
Grinding Vice- Screw Type
VIEW DETAILS
Counted amongst one of the commendable names, we are engaged in bringing forth a wide gamut of Edge Finder. At par with the norms and quality principles pre-determined by the industry, these offered products are widely known for their précised functionality. Our esteemed customers can buy these products from us at leading industry rates within the committed time.
Edge Finder
VIEW DETAILS

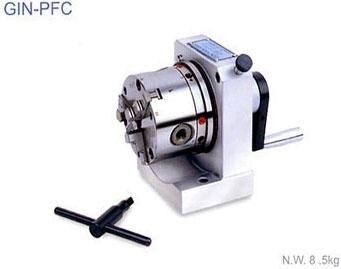

Precision 3 jaw chuck provide rapid clamping and it suitable for mass production
3 Jaw Punch Former
VIEW DETAILS

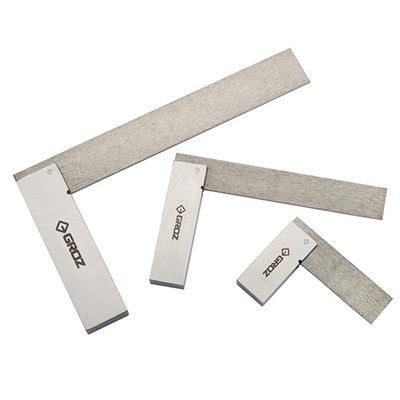

For our esteemed clients, we are engaged in offering an extensive range of Try Square. We design these products by utilizing of high-end technology and factory-tested raw material in line with nationally accepted standards. Our clients highly demand this range for its associated features like accurate dimensions..
Try Square
VIEW DETAILS

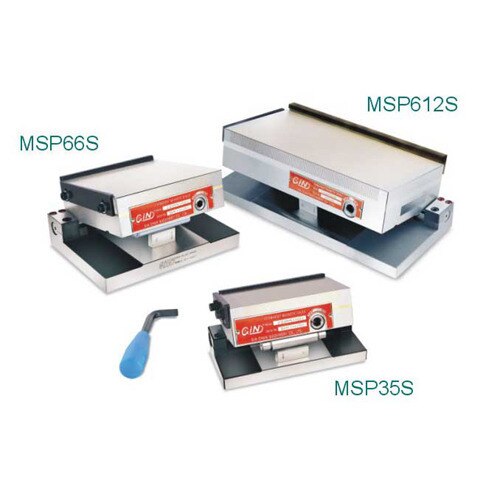

* Special feature with magnetic chuck * Can fix tiny parts firmly on the chuck which pitch is only 1. 5mm * Easy operaton for adjusting angle thickness and light weight.Yes! I am interested
Sine Plate with Fine Magnetic Chuck
VIEW DETAILS

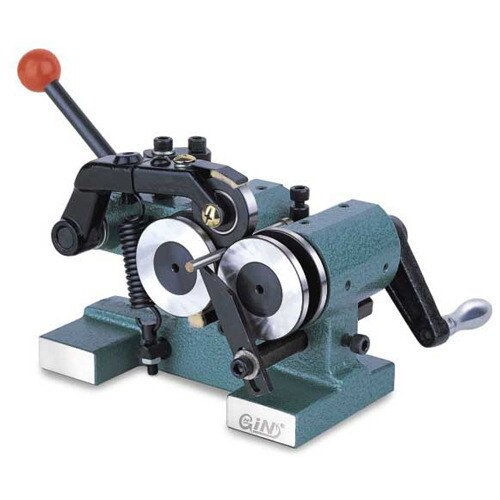

Punch Grinder is a tool which can be put on the surface of grinding machine for grinding punches. It can do cylindrical grinding automatically. * The roller can be used to adjust the workpiece before grinding. * Use screw pressure for firm holding as shown in the picture for heavy grinding. * Accuracy of roller is within 0.005mm. It can grind punches of outside diameter from 1.5 to 25mm, extended grinding length is within 5~35mm
Punch Grinder
VIEW DETAILS

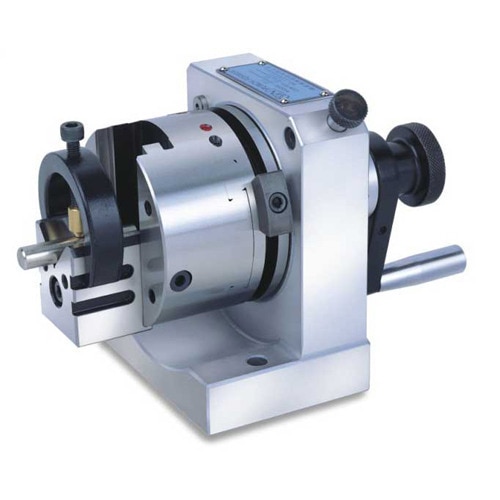

* PFA Punch Former is an attachment for precision grinding different types of punches and electrodes of EDM on surface grinding machine and universal tool machine * The adjusting function for oval punch grinding * The punch former with crank possessing function for dressing grinding wheel into various cross section of flat or curved shapes. * V-Block adjusting function for,different outside diameters,centre is with in 5mm.
Punch Former
VIEW DETAILS

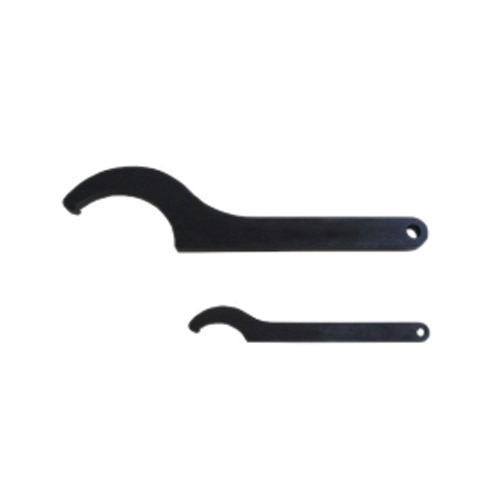

These Hook Spanners are used for the accurate sleeves and nuts assembling as it avoids hammer and chisel punches for tightening the nut. These are available in various sizes to meet the exact demand of clients.
Hook Spanner
VIEW DETAILS

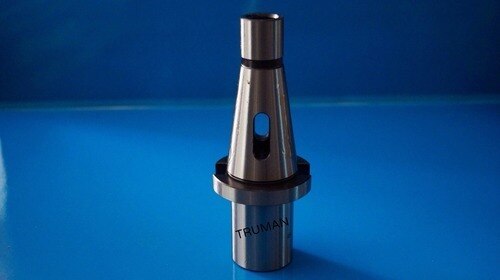

With our vast industrial experience, we are engaged in offering a bulk of Morse Taper Adapters. These Morse Taper Adapters are available as per the international industry standards. We offer Morse Taper Adapters to our patrons for using in various industrial applications. Moreover, customers can avail Morse Taper Adapters from us at affordable rates.
Morse Taper Adapters
VIEW DETAILS

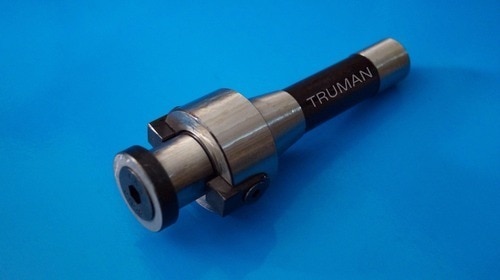

Shell End Mill Arbor We offer supreme quality shell end mill arbor that is completely designed with extreme quality raw material and is procured from renowned industries. We offer these shell end mill arbors in different specification with respect to application
R8-Shell End Mill Arbors
VIEW DETAILS

Filter using tags

TOOLFAST' Steel V-Blocks are made of tool steel, hardened, tempered & precision ground on all sides. These are supplied in matched pairs having both sides 'V' with one clamp Unbreakable Steel Clamp.All Hardened & Tempered 52 - 56 HRC.Parallelism & Squareness of all faces & 'V' within ± 0.005mm.Inspection certificate is furnished. MODEL LENGTH HEIGHT WIDTH HOLDING CAPACITYØ MAX N. W. KGS.(PAIR WITHONE CLAMP)SVB-50 50 37 37 37 1.1SVB-80 80 60 60 60 3.8SVB-100 100 75 75 75 7.6SVB-125 125 95 95 95 14.3SVB-150 150 98 98 98 19.0
View Details
Steel V-Block
TOOLFAST' Precision Sine Vice is used to obtain precise angles by means of gauge blocks. Apart from its use on milling and grinding machine, this Sine Vice can also be used as a reference for inspection. Hardened & Tempered 52 - 56 HRC. Parallelism within 0.005mm upto 200mm length. Inspection certificate is furnished. Chart for setting sine angles with the help of gauge blocks is provided.MODEL JAW WIDTH JAW DEPTH MAX. JAW OPENING OVERALL LENGTH OVERALL HEIGHT N. W.KGS.PSV-2 50 25 65 140 80 3.2PSV-3 73 35 100 190 104 7.2PSV-4 100 45 125 245 134 16.5
View Details
Precision Sine Vice
Using the current technology, up-to-date machines and urbane equipment in all our processes, we are capable of offering a precisely-engineered array of Grinding Vice- Screw Type. Massively reckoned amongst our customers for their reliability, seamless finish and ruggedness these offered products are highly demanded. Additionally, our clients can buy these from us at most reasonable costs.MODEL JAW WIDTH JAW DEPTH MAX. JAW OPENING OVERALL LENGTH OVERALL HEIGHT N. W.KGS.GV-65 63 32 85 190 65 4.4GV-75 73 35 100 210 74 6.2GV-90 88 40 125 250 88 10.0GV-100 100 45 125 260 95 13.0GV-100 125 50 158 300 110 20.0GV-150 150 50 175 315 110 24.5
View Details
Grinding Vice- Screw Typ
Counted amongst one of the commendable names, we are engaged in bringing forth a wide gamut of Edge Finder. At par with the norms and quality principles pre-determined by the industry, these offered products are widely known for their précised functionality. Our esteemed customers can buy these products from us at leading industry rates within the committed time.
View Details
Edge Finder
Precision 3 jaw chuck provide rapid clamping and it suitable for mass production
View Details
3 Jaw Punch Former
For our esteemed clients, we are engaged in offering an extensive range of Try Square. We design these products by utilizing of high-end technology and factory-tested raw material in line with nationally accepted standards. Our clients highly demand this range for its associated features like accurate dimensions..
View Details
Try Square
* Special feature with magnetic chuck * Can fix tiny parts firmly on the chuck which pitch is only 1. 5mm * Easy operaton for adjusting angle thickness and light weight.Yes! I am interested
View Details
Sine Plate with Fine Mag
Punch Grinder is a tool which can be put on the surface of grinding machine for grinding punches. It can do cylindrical grinding automatically. * The roller can be used to adjust the workpiece before grinding. * Use screw pressure for firm holding as shown in the picture for heavy grinding. * Accuracy of roller is within 0.005mm. It can grind punches of outside diameter from 1.5 to 25mm, extended grinding length is within 5~35mm
View Details
Punch Grinder
* PFA Punch Former is an attachment for precision grinding different types of punches and electrodes of EDM on surface grinding machine and universal tool machine * The adjusting function for oval punch grinding * The punch former with crank possessing function for dressing grinding wheel into various cross section of flat or curved shapes. * V-Block adjusting function for,different outside diameters,centre is with in 5mm.
View Details
Punch Former
These Hook Spanners are used for the accurate sleeves and nuts assembling as it avoids hammer and chisel punches for tightening the nut. These are available in various sizes to meet the exact demand of clients.
View Details
Hook Spanner
With our vast industrial experience, we are engaged in offering a bulk of Morse Taper Adapters. These Morse Taper Adapters are available as per the international industry standards. We offer Morse Taper Adapters to our patrons for using in various industrial applications. Moreover, customers can avail Morse Taper Adapters from us at affordable rates.
View Details
Morse Taper Adapters
Shell End Mill Arbor We offer supreme quality shell end mill arbor that is completely designed with extreme quality raw material and is procured from renowned industries. We offer these shell end mill arbors in different specification with respect to application
View Details
R8-Shell End Mill Arbors
